乌伦古坳陷深层石炭系火山岩低频地震识别技术应用

周惠, 田玉昆, 刘晓, 李娟, 马彦彦

The application of low frequency seismic identification technology to deep Carboniferous volcanic rocks in Wulungu depression

Hui ZHOU, Yu-Kun TIAN, Xiao LIU, Juan LI, Yan-Yan MA

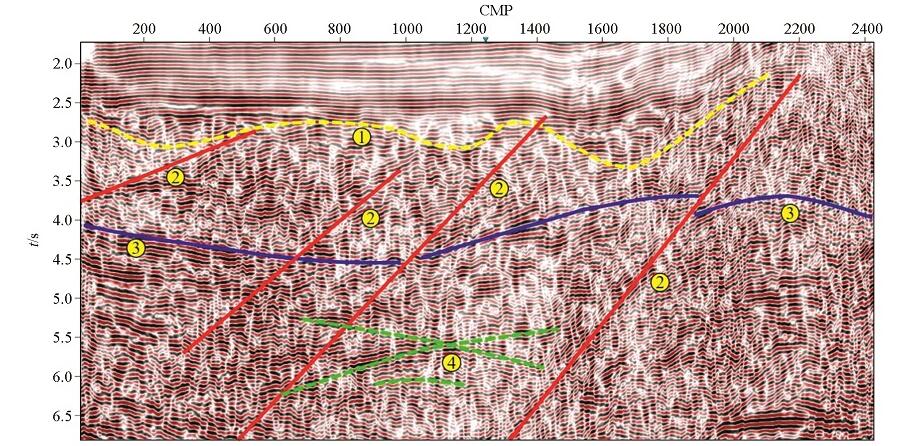

图4 构造格架搭建(4~15 Hz,叠加剖面) ①—岩体包络面;②—断面波;③—沉积地层;④—回转波

Fig.4 Structural framework(4~15 Hz,stacked section) ①—envelope surface of rock mass;②—fault surface wav;③—sedimentary stratum;④—rotating wave
