辽河外围北部秀水盆地大地电磁测深研究

张鹏辉, 张小博, 袁永真, 方慧, 刘建勋, 姜春香

A study of magnetotelluric sounding of Xiushui Basin in the northern periphery of Liaohe

Peng-Hui ZHANG, Xiao-Bo ZHANG, Yong-Zhen YUAN, Hui FANG, Jian-Xun LIU, Chun-Xiang JIANG

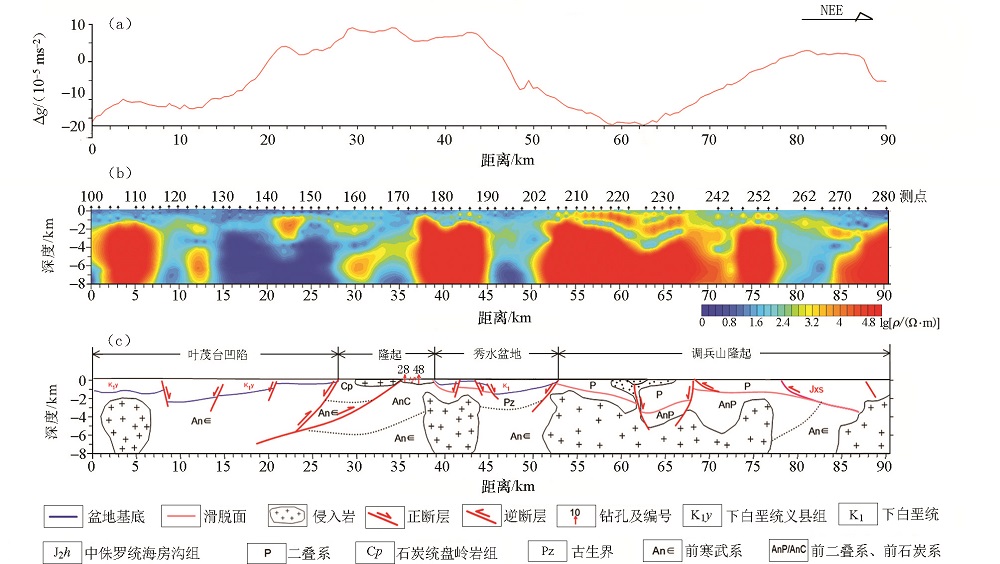

图6 L2测线重力异常曲线(a)、电性结构剖面(b)及地质推断结果(c)

Fig.6 Gravity anomaly curve(a)、Magnetotelluric sounding two-dimensional inverted electrical section(b) and geological interpretation(c)of L2 line
