玻利维亚盆山原镶嵌构造区特殊景观区沟系次生晕—遥感—构造岩相学综合评价技术组合研发与应用效果

杜玉龙, 方维萱

Research,development and application effect of comprehensive evaluation technique of valley system secondary halo-remote sensing-tectonic lithofacies in basin-orogen-plateau inlaid structure and special landscape zone, Bolivia

Yu-Long DU, Wei-Xuan FANG

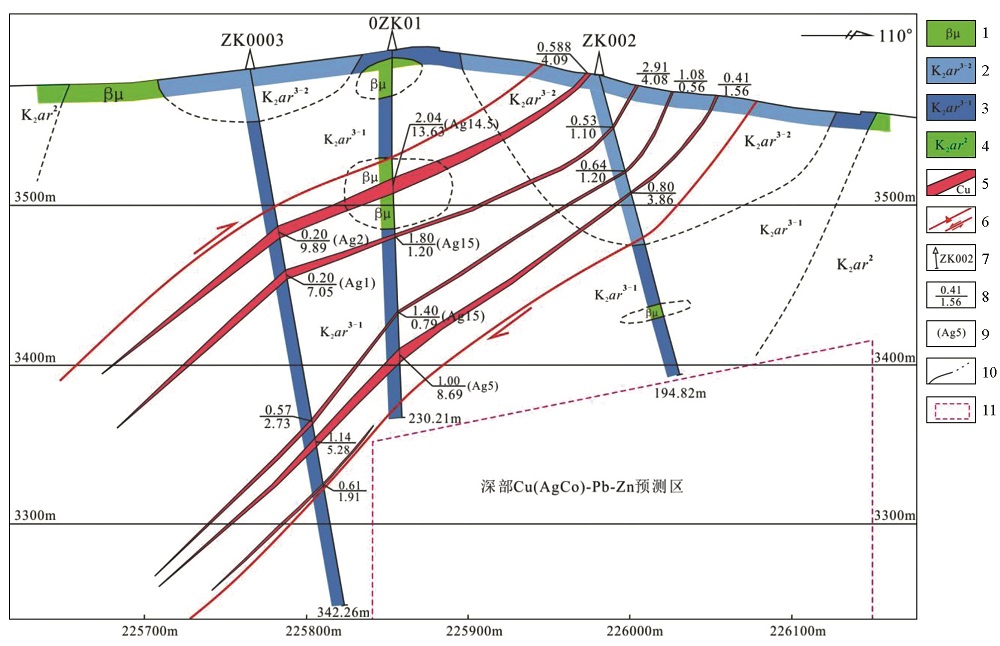

图5 玻利维亚Tupiza试验区异常深部钻探验证0号剖面 1—辉绿岩-辉长岩岩脉,次火山侵入相;2—上白垩统阿诺依菲雅组第三岩性段第二岩相层,火山溢流相;3—上白垩统阿诺依菲雅组第三岩性段第一岩性层,火山碎屑岩相;4—上白垩统阿诺依菲雅组第二岩性段:5—铜(银)矿(化)体;6—逆冲断层和断裂带及斜冲走滑方向;7—钻孔位置及编号;8—铜矿体品位(%)及厚度(m);9—伴生银品位(10-6);10—推测、实测地层界线;11—预测铜(钴)矿体

Fig.5 NO. 0 drill hole section for anomalies verification in Tupiza tentative area, Bolivia 1—diabase-gabbro dikes, subvolcanic intrusion phase; 2—the second bed of the third member of Aroifilla formation, Upper Cretaceous, effusive facies; 3—the first bed of the third member of Aroifilla formation, Upper Cretaceous, volcaniclastic facies; 4—the second member of Aroifilla formation, Upper Cretaceous; 5—copper (silver) orebody and metallization; 6—thrust fault and fault zone and its strike direction; 7—drilling and its number; 8—copper orebody grade (%) and thickness (m); 9—associated silver at grade(10-6); 10—measured and inferred line of geological limitation; 11—forecasting copper (cobalt) orebody
