氡气及CSAMT联合探测在内蒙古五十家子盆地铀矿勘查中的应用研究

吴燕清, 王世成, 丁园, 王青, 王文正

Application study of radon gas and CSAMT joint detection in the uranium exploration in the Wushijiazi Basin of Inner Mongolia

Yan-Qing WU, Shi-Chen WANG, Yuan DIN, Qing WANG, Wen-Zheng WANG

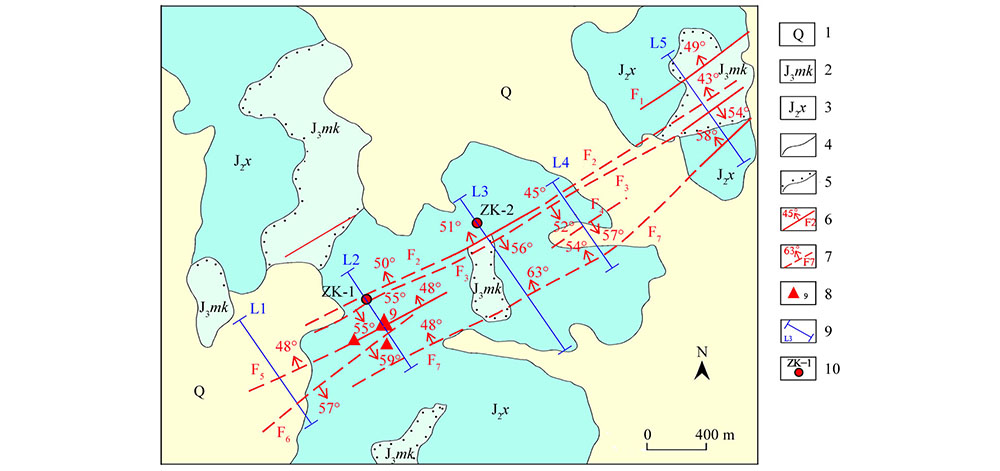

图6 五十家子盆地重点工作区综合成果 1—第四系;2—上侏罗统满克头鄂博组;3—中侏罗统新民组;4—地质界线;5—不整合接触界线;6—实测断裂构造;7—解释断裂构造;8—铀矿点及编号;9—氡气、CSAMT综合剖面测量位置及编号;10—铀工业孔及编号

Fig.6 Comprehensive results of the key working areas of the Wushijiazi basin 1—Quaternary;2—upper Jurassic Manketou Obo Formation middle Jurassic Xinmin formation;3—middle Jurassic Xinmin formation;4—geological boundary;5—unconformity contact boundary;6—measured fracture structure;7—interpretation of fault structures;8—uranium mine points and numbers;9—location and number of radon and CSAMT comprehensive profiles;10—location and number of boreholes in uranium industry
