磁异常和梯度的频率域三维成像方法

崔亚彤, 郭良辉

3-D imaging of magnetic anomalies and gradients in the frequency domain

Ya-Tong CUI, Liang-Hui GUO

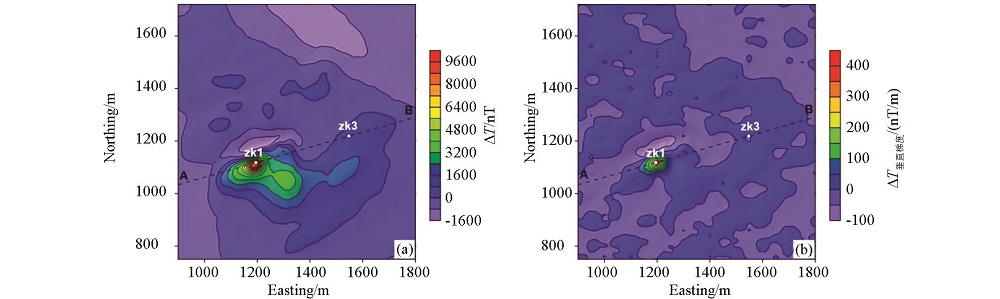

图7 新疆某金属矿区实测数据 a—磁总场异常;b—异常垂直梯度;黑色虚线A-B为图8所示成像结果剖面位置,zk1和zk3为两口深度不同的钻井

Fig.7 The real data from a metallic deposit area in Xinjiang a—the total magnetic anomalies;b—magnetic vertical gradient;black dashed line A-B locates the profile shown in Figure 8, and zk1 and zk3 locate two boreholes
