北京副中心地区燕郊断裂空间展布特征

何祎, 雷晓东, 关伟, 李晨, 李巧灵

Spatial distribution characteristics of Yanjiao fault in Beijing sub-central area

Yi HE, Xiao-Dong LEI, Wei GUAN, Chen LI, Qiao-Ling LI

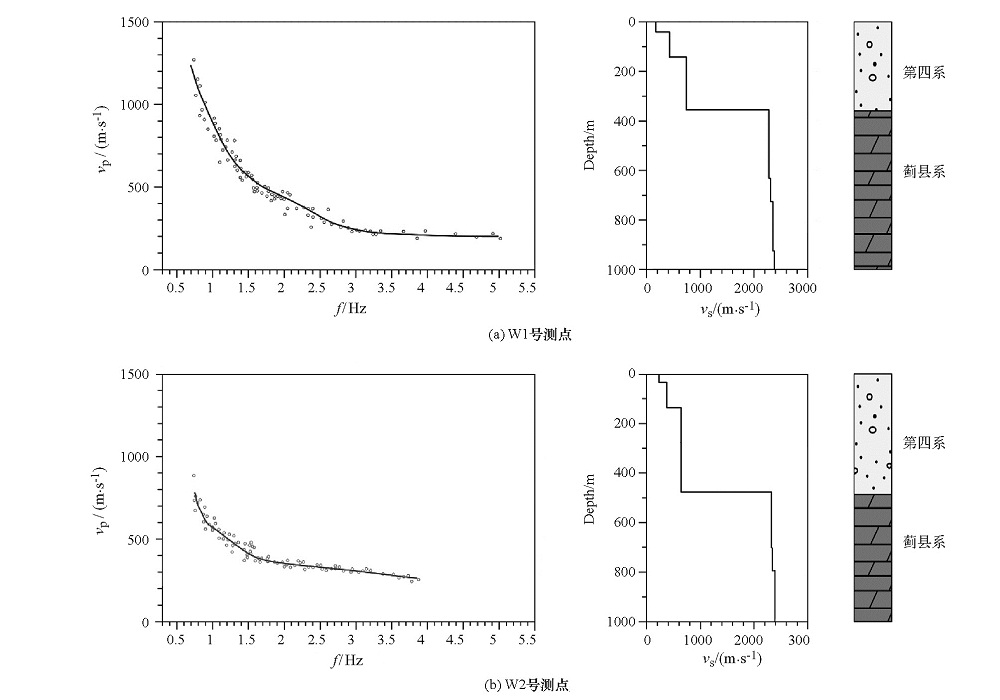

图4 微动测深点频散曲线及推断解释结果 a—W1号测点频散曲线(左)、视S波速度结构(中)、地质解释(右);b—W2号测点频散曲线(左)、视S波速度结构(中)、地质解释(右)

Fig.4 The dispersion curve of the microdynamic sounding point and the inference diagram a—dispersion curve of W1 measuring point (left)、visual S-wave velocity structure (middle)、geological interpretation(right);b—dispersion curve of W2 measuring point (left)、visual S-wave velocity structure (middle)、geological interpretation(right)
