南岭于都—赣县矿集区银坑示范区重磁资料探测花岗岩分布研究

刘金兰, 赵斌, 王万银, 李建国, 周新鹏, 王云鹏

A study of the distribution of granite detected by gravity and magnetic data in Yinkeng Demonstration Area of Nanling Yudu-Ganxian ore concentration area

Jin-Lan LIU, Bin ZHAO, Wan-Yin WANG, Jian-Guo LI, Xin-Peng ZHOU, Yun-Peng WANG

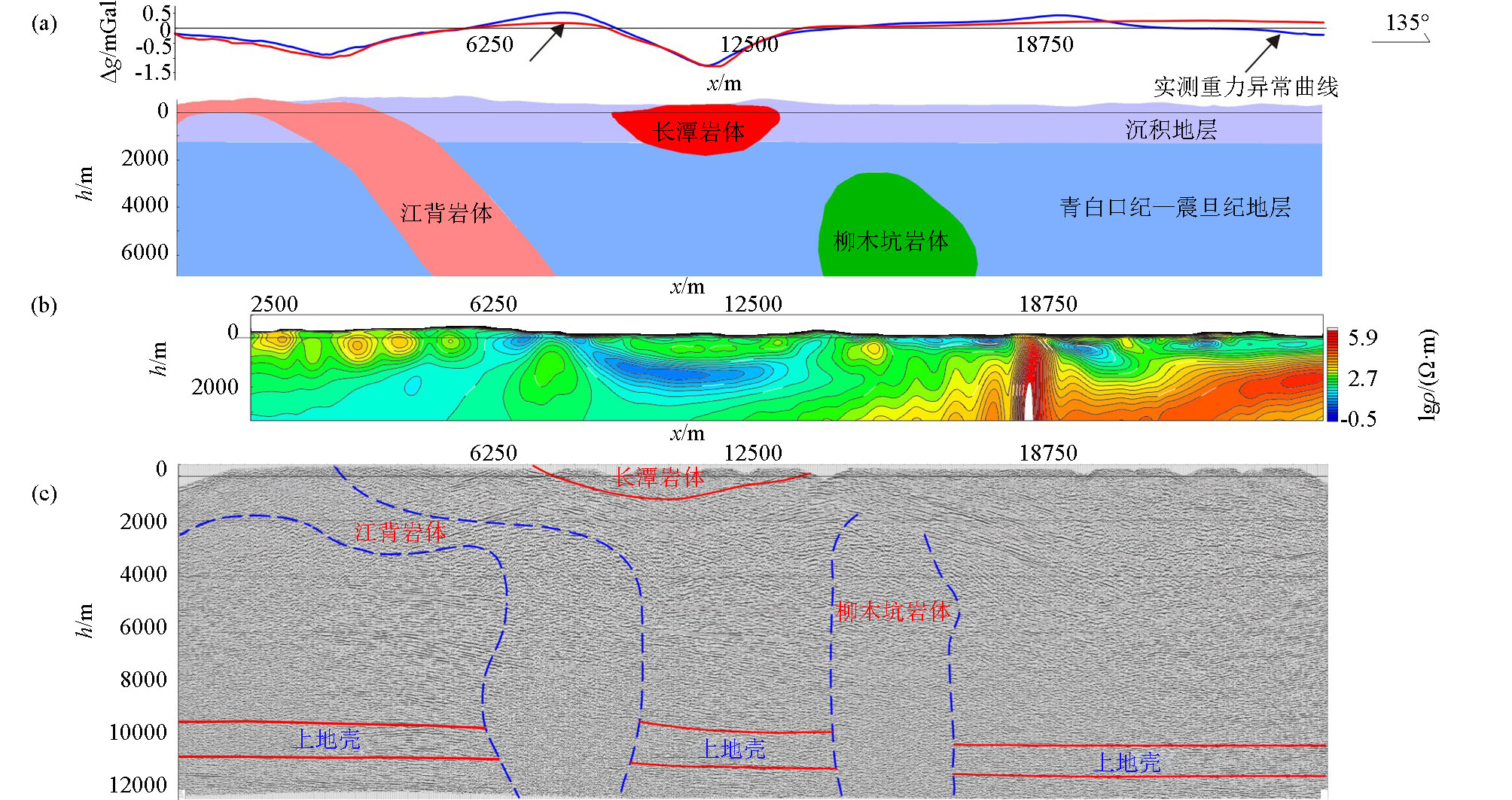

图7 银坑示范区145线重、电、震反演花岗岩分布结果 a—剩余布格重力异常反演结果;b—AMT电阻率断面图[14];c—二维反射地震叠加剖面结果[25]

Fig.7 Granite distribution results obtained by the gravity, electrical and seismic inversion methods applied to Line 145 of the Yinkeng Demonstration Area a—residual Bouguer anomaly inversion results; b—AMT resistivity profile[14]; c—2D reflection seismic stack profile results[25]
