苏世龙, 贺振华, 刘玉莲, 张辉, 谷延斌, 郭伟. 城区勘探中激发药量对地震数据品质的影响及处理对策——以中国东部某油田CY城区为例[J]. 物探与化探, 2017,39(6): 1160-1166.
SU Shi-Long, HE Zheng-Hua, LIU Yu-Lian, ZHANG Hui, GU Yan-Bin, GUO Wei. The impact of explosive excitation weight on the quality of seismic data analysis in city exploration and countermeasures:A case study of CY City in an oilfield of eastern China[J]. Geophysical and Geochemical Exploration, 2017,39(6): 1160-1166.
The impact of explosive excitation weight on the quality of seismic data analysis in city exploration and countermeasures:A case study of CY City in an oilfield of eastern China
SU Shi-Long1,2, HE Zheng-Hua1, LIU Yu-Lian2, ZHANG Hui2, GU Yan-Bin2, GUO Wei2
1.State Key Laboratory of Oil & Gas Reservoirs Geology and Exploitation,Chengdu University of Technology,Chengdu 610059,China;

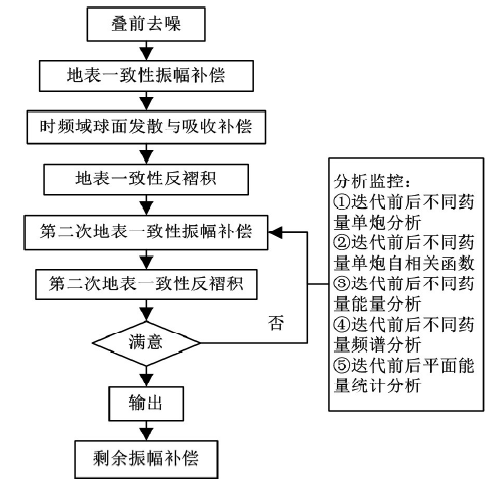

In order to solve the influence of different doses of explosive excitation on seismic data quality,the authors analyzed and tested the seismic data in indoor processing.Using such means as autocorrelation statistics,frequency statistics,and energy statistics of the seismic data,the authors found the correlation of explosive excitation weight and seismic wave characteristics and,by way of point-line-plane analysis,revealed the changes related to seismic data quality.On such a basis,the authors put forward the quantitative analysis and iterative processing technology in data processing and,by application of spherical divergence and absorption time and frequency domain compensation as well as the surface consistent amplitude and surface consistent deconvolution technique,the authors solved the problem of the influence of different doses of explosive excitation on the quality of seismic data with relatively satisfactory processing effect.The results provide reliable seismic data for the increasing production of the old oilfield in CY City
Keyword:
city exploration; explosive excitation weight; quantitative analysis; iterative processing; seismic data processing; seismic data
