The petrophysical characteristics of Upper Paleozoic source rocks from the central and southern part of the Da Hinggan Mountains |
Yong-Zhen YUAN1,2, Peng-Hui ZHANG1,2, Xiao-Bo ZHANG1,2 |
1. Institute of Geophysical and Geochemical Exploration, CAGS, Langfang 065000, China 2. Electromagnetic Detection Technology Key Laboratory of Ministry of Natural Resources, Langfang 065000, China |
|
|
Abstract Based on a study of regional stratigraphic development characteristics, the authors hold that the Upper Paleozoic in the central and southern part of the Da Hinggan Mountains has a good prospect for oil and gas exploration. In this study, stratigraphic physical specimens were systematically collected from Jarud basin, Tuquan basin and Ulanhot area, and density, magnetization and resistivity were analyzed. Combined with the previous character research data and the results of this work, the petrophysical parameters of the strata in Jarud basin, Tuquan basin and Ulanhot area were systematically sorted out, and the petrophysical interface of the strata in Linxi formation of the Upper Paleozoic was emphatically analyzed, thus providing basic data for the non-seismic geophysical survey in this area. A comparative study of two aspects of paleogeographic environment and physical characteristics shows that the hydrocarbon source rock strata of Linxi Formation in three areas are different. It is considered that the conditions for the formation of hydrocarbon source rock in Tuquan basin area are relatively favorable and, in addition, the degree of slatinization of mudstone is low, suggesting that this area is the most favorable area in the search for hydrocarbon source rock of Linxi Formation.
|
Received: 19 February 2019
Published: 15 August 2019
|
|
|
|
|
|

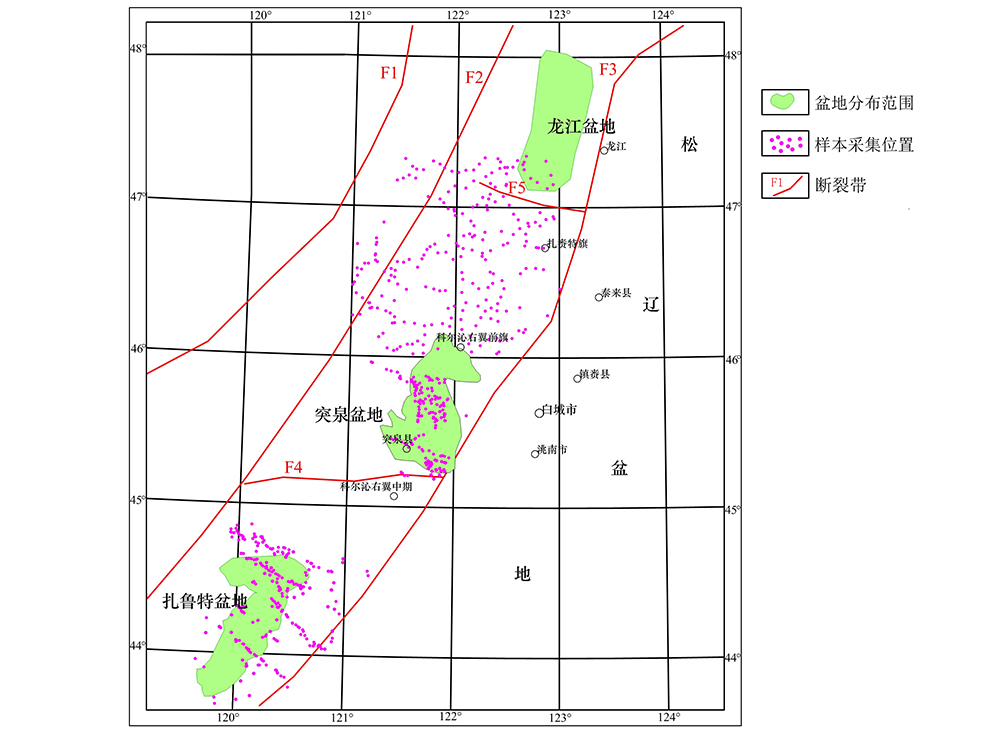

The range of the research area and the petrophysical characteristics of point collection
|
地层(代号) | 岩性 | 密度/(103 kg·m-3) | 电阻率/(Ω·m) | 梅勒图组(K1m) | 安山岩 | 2.63 | 2239 | 白音高老组(J3b) | 凝灰岩 | 2.56 | 332 | 玛尼吐组(J3mn) | 凝灰岩 | 2.59 | 789 | 满克头鄂博组(J3mk) | 凝灰岩、流纹岩 | 2.56 | 358 | 傅家洼子组(J2f) | 凝灰岩 | 2.64 | 260 | 万宝组(J2w) | 凝灰岩 | 2.53 | 326 | 红旗组(J1h) | 板岩 | 2.28※ | 20~80※ | 林西组(P3l) | 粉砂岩、砂岩 | 2.69 | 1475 | 大石寨组(P2ds) | 安山岩 | 2.56 | 4611 | 砂岩、粉砂岩 | 2.79 | 寿山沟组(P1ss) | 砂岩 | 2.66 | 782 | 侵入岩 | 花岗斑岩 | 2.56 | 563 | 花岗岩 | 2.58 | 1067 | 辉长岩 | 2.63 | 2851 |
|
Petrophysical statistics of Zhalute basin
|
地层(代号) | 岩性 | 密度/(103 kg·m-3) | 电阻率/(Ω·m) | 梅勒图组(K1m) | 玄武岩 | 2.64 | 2519 | 白音高老组(J3b) | 凝灰岩 | 2.47 | 308 | 玛尼吐组(J3mn) | 安山岩 | 2.51 | 198 | 满克头鄂博 组(J3mk) | 凝灰岩 | 2.49 | 439 | 砂岩 | 2.63 | 445 | 上侏罗统蒙阴组(J3m) | 英安岩 | 2.52 | 441 | 傅家洼子组(J2f) | 凝灰岩 | 2.53 | 374 | 呼日格组(J2h) | 凝灰岩 | 2.56 | 256 | 江仓组(J2j) | 凝灰岩 | 2.52 | 373 | 粉砂岩、英安岩 | 2.55 | 万宝组(J2w) | 粉砂岩 | 2.56 | 1250 | 红旗组(J1h) | 泥岩 | 2.60 | 560 | 林西组(P3l) | 板岩 | 2.66 | 632 | 哲斯组(P2zs) | 粉砂岩、砾岩 | 2.68 | 2071 | 大石寨组(P2ds) | 砂岩 | 2.69 | 21 | 侵入岩 | 花岗斑岩 | 2.48 | 624 | 花岗岩 | 2.56 | 875 |
|
Petrophysical statistics of Tuquan basin
|
地层(代号) | 岩性 | 密度/(103 kg·m-3) | 电阻率/(Ω·m) | 新生界(Q+R) | 黏土、泥砂岩 | 2.05 | | 大磨拐河(K1d) | 砂岩 | 2.54 | 407 | 甘河组(K1g) | 安山岩 | 2.61 | 575 | 凝灰岩 | 2.47 | 251 | 龙江组(K1l) | 凝灰岩 | 2.48 | 467 | 粉砂岩 | 2.45 | 128 | 白音高老组(J3b) | 凝灰岩 | 2.54 | 1258 | 砂岩 | 2.50 | 363 | 玛尼吐组(J3mn) | 凝灰岩 | 2.60 | 1348 | 凝灰角砾岩 | 2.55 | 371 | 安山岩 | 2.66 | 4677 | 满克头鄂博组(J3mk) | 凝灰岩 | 2.59 | 1202 | 砂岩 | 2.63 | 173 | 林西组(P3l) | 板岩 | 2.72 | 1348 | 泥岩 | 2.69 | | 砂岩 | 2.64 | 776 | 大石寨组(P2ds) | 凝灰岩 | 2.89 | 3235 | 火山岩 | 2.69 | 1513 | 哲斯组(P2zs) | 灰岩 | 2.69 | 7079 | 泥岩 | 2.69 | | 寿山沟组(P1ss) | 板岩 | 2.7 | 524 | 宝力高庙组(CPbl) | 大理岩 | 2.75 | 4466 | 凝灰岩 | 2.68 | 891 |
|
Petrophysical statistics of Wulanhaote-solon
|
盆地 | 密度/(103 kg·m-3) | 电阻率/(Ω·m) | 扎鲁特盆地 | 2.69 | 1475 | 突泉盆地 | 2.66 | 632 | 乌兰浩特地区 | 2.70 | 1348 |
|
The density and specific resistance of Linxi slate
|
