0 引言
地下存在密度差异的岩石或地层接触带上往往形成明显的密度分界面,其形态可以通过密度分界面两边介质的密度差异和形态不规则所引起的重力异常反演得到。密度界面反演方法在推断区域构造、地壳结晶基底面分布情况、获取莫霍面深度及其起伏形态等方面具有重要意义。目前,密度界面的反演方法众多,总体上可分为空间域密度界面反演方法和频率域密度界面反演方法。空间域密度界面反演方法大体包括直接迭代法[1,2,3,4,5]、压缩质面法[6,7,8]和非线性反演方法[9,10,11]。频率域的密度界面反演方法则是通过引入快速傅里叶变换(FFT)进而提高计算效率[12,13,14,15,16]。为了得到更加精确的反演效果,一些学者在常密度界面反演方法的基础上,引入变密度界面模型进行反演[17,18]。尽管已有的密度界面反演方法已经比较成熟,然而,这些方法的绝大多数都是针对基于笛卡尔坐标系统的小范围研究区域。然而,当涉及到区域性乃至全球尺度问题时,地球曲率问题将不容忽视[19,20,21,22,23],此时,基于笛卡尔坐标系统的界面反演方法已不再适用,需要引入基于球坐标系统的Tesseroid模型[24]进行反演计算。
当前,基于Tesseroid模型的重力反演研究主要集中在三维密度成像和莫霍面反演。Liang[25]将Tesseroid模型的重力三维反演方法应用到月球GRAIL重力数据反演中,得到了月球的三维密度结构。Zhang[26]利用高斯—勒让德积分法构建核函数并使用重力梯度全张量对月球GRAIL重力异常进行反演,得到了月球的三维密度分布。同样,Uieda[23]也利用Tesseroid模型对卫星重力数据进行球坐标系快速非线性反演,在反演计算过程中,作者利用参考莫霍面深度、正则化参数和莫霍面起伏重力异常对反演结果加以约束,得到了南美洲大陆的莫霍面深度。前人[23,25-27]所使用的重力反演方法在针对卫星和探测器等高空观测数据时能够取得很好的反演效果,然而,由于邻近效应的存在(当近距离观测时,误差会随着观测距离的减小而急剧增大),这些方法并不能很好地适用于近地表重力观测数据的反演解释。
实现球坐标系地表观测数据的密度界面高精度反演的前提是实现其高精度的正演计算。目前,Tesseroid模型的重力正演计算方法主要有泰勒(Taylor)级数积分法[20,27-30]和高斯—勒让德积分法(Gauss Legendre Quadrature,缩写GLQ)[19,21-23,26],结合前人的研究,两种方法在应用于近地表观测时,其计算精度都会大打折扣,其中,泰勒级数积分法尤为严重,但GLQ方法的计算效率又要略微低于泰勒级数积分法。受限于球坐标系重力正演精度和效率,前人在反演时多数采用的是卫星和探测器等高空数据[23,25,27],而非地表观测数据。由于卫星数据精度较实际地表观测数据低,会给反演结果带来误差。然而,目前鲜有适用于球坐标系地表观测数据的密度界面反演方法。
1 方法与原理
1.1 球坐标系Tesseroid单元体重力正演方法
1.1.1 重力正演公式

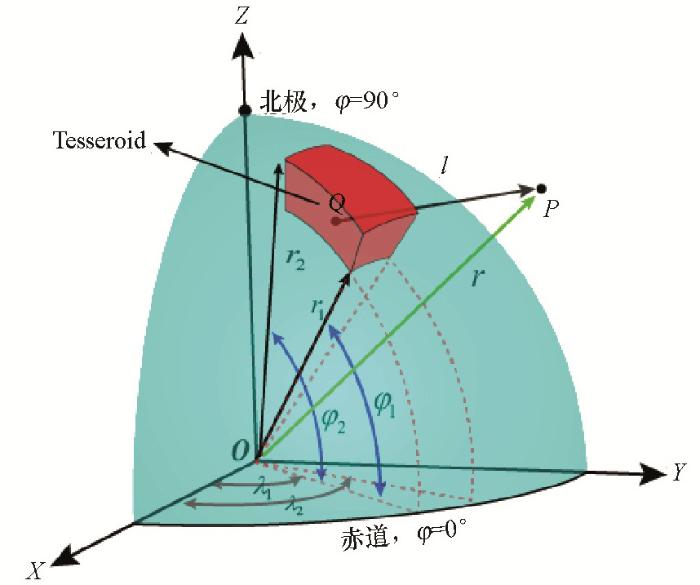

图1
其中:
将其在r方向上进行积分计算[20],三重体积分就简化为两重面积分,得到如下表达式:
当Tesseroid单元体区间范围足够小时,可以利用GLQ积分公式对式(3)的积分计算结果进行近似,进一步可得到:
其中:
式中:λsi、φsj分别为积分区间内经度、纬度方向的高斯节点;λ'si、φ'sj为各坐标方向上(-1,1)区间的高斯节点;Pnλ-1(λ'si)为高斯节点λ'si处nλ-1阶GLQ多项式的值;P'nλ(λ'si)为高斯节点λ'si处nλ阶GLQ多项式的一阶导数值。
式(4)中r方向上的计算精度主要受Tesseroid单元体大小、GLQ多项式阶次和式(2)中l的大小影响。需要特别强调的是,由于引力公式的局限性,当近距离观测时,观测精度对l的大小比较敏感。本文选择GLQ积分法的优势在于该方法可以将Tesseroid表面的积分计算点移至Tesseroid单元体内部,避免了计算时奇异点的出现,该方法相较于泰勒级数积分法精度已经有了明显的提升,但也略微增大了计算量。
1.1.2 自适应剖分方案
图2

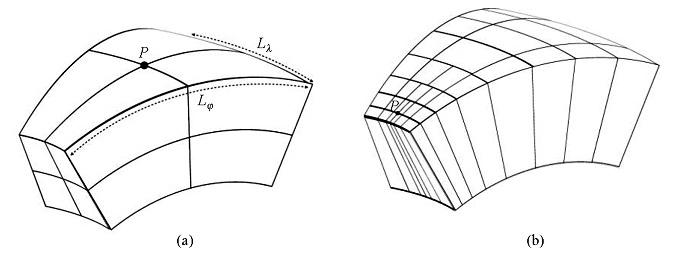

图2
Tesseroid单元体网格剖分示意
a—常规剖分的网格边长大小平均,Lφ和Lλ为Tesseroid单元体上表面纬度和经度方向上边长;b—自适应剖分方案的剖分采用的是在观测点近距离处小网格剖分,远距离处采用大网格剖分
Fig.2
Sketch of discretization of Tesseroid
a—routine discretization shown that the tesseroid had a uniform division. Lφ, Lλ are the dimensions of the tesseroid’s top surface;b—adaptive discretization shown that a fine division of the tesseroid close the computation point and a coarser division further away
笔者针对已经改进的GLQ积分公式,对前人的自适应剖分方案也进行了简化改进。对于一个径向、纬向和经向的计算范围分别为[r1,r2]、[φ1,φ2]、[λ1,λ2]的Tesseroid单元体,其几何中心点坐标为(rc,φc,λc),其与观测点P(r,φ,λ)之间的距离为d。对一个Tesseroid单元体是否进行进一步的剖分,可以由式(5)来进行判定。
其中:
式中:Lφ,Lλ根据Tesseroid单元体的弧长与周长的比例得来;W为根据不同的计算精度要求而给定的距离判定值。
基于此,适合本文2D-GLQ积分公式的网格加密方案可以分为以下几步:
1) 计算d,Li的值,判定关系式(5)是否成立,如果成立,直接计算重力值。
2) 如果式(5)不成立,直接将当前单元体剖分成网格大小为Δφ'×Δλ'的N×N个单元体(式(6)),则新生成的所有小单元体都符合式(5)的判定条件。将新生成的所有小的Tesseroid单元体在观测点处的重力值进行累加就得到了加密剖分前的Tesseroid单元体重力异常值。
3) 进行下一个Tesseroid单元体的计算,重复步骤1),2)。
其中:
式中:C为向上取整符号。对前人自适应剖分方案改进后,公式更加简化,对计算精度的控制也变得更加细腻,而且还大大减少了W值的循环判定次数,在一定程度上节省了计算时间。笔者将2D-GLQ积分公式与改进的自适应剖分方案相结合的重力正演方法称为GLQ-Plus。
1.2 球坐标系密度界面正演方法

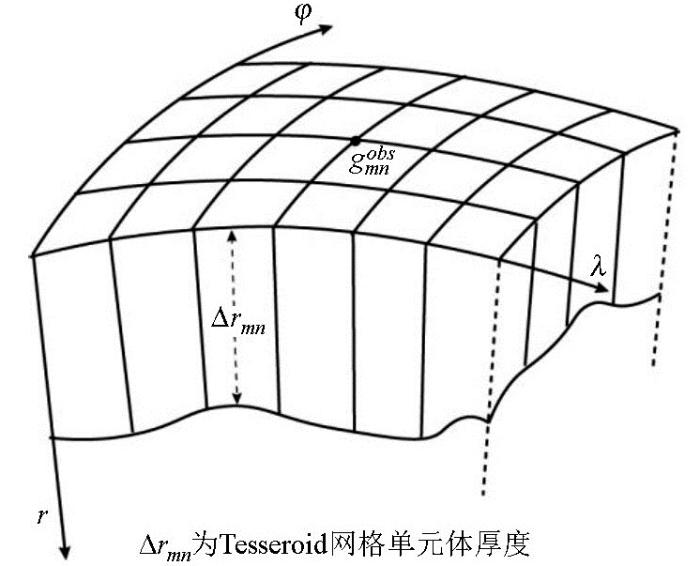

相较于传统的笛卡尔直角坐标系统,球坐标系统中所选择的参考面为球面,如图3所示,参考球面可以位于Tesseroid顶界面,也可以位于底界面。这样,区域内由m×n个Tesseroid单元体所组成的计算区域,其在观测点P处的重力异常gP为各个单元网格块体在P点处所引起重力异常的叠加。
图3
1.3 球坐标系密度界面反演方法

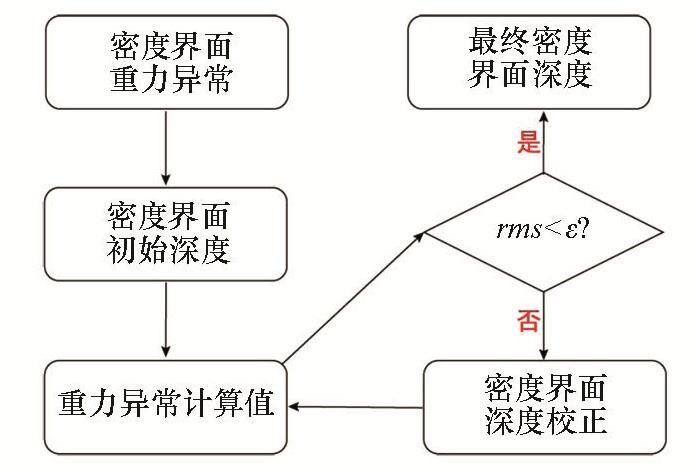

基于Cordell迭代算法流程,本文球坐标系密度界面迭代反演流程如下图4所示:
图4
1)利用Bott[33]公式对Tesseroid单元体的初始厚度进行估算:
式中:K=
2)由式(7)中可以得到重力异常计算初值
3)如果RMS不符合要求,则计算下一次重力正演计算前的深度修改值(式(10)),然后继续执行第2步运算,如此循环迭代,直到RMS满足要求为止。
2 理论模型数据试验
2.1 Tesseroid单元体模型试验与评价
图5

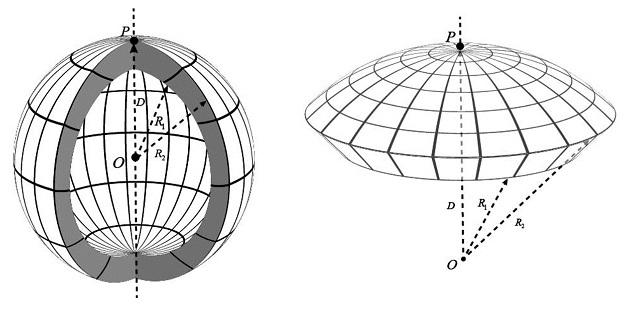

图5
球壳体模型示意
a—球壳内视;b—球壳侧视
Fig.5
The images of spherical shell models
a—inside view of a shell;b—side view of a shell
利用球壳体模型求取重力精确解析值,将本文方法和常规方法球壳体的重力计算值与球壳体的理论重力值进行对比,以此达到验证计算精度和效率的目的。球壳体的理论重力值gtrue的计算关系式:
此次模型试验中,ρ取0.3 g/cm3,R2取6.371×106 m,R1取6.361×106 m,球壳厚度为104 m,D-R2为观测点P与球壳体外球面之间的距离(观测高度H),笔者通过不同的观测高度来验证各方法对于观测高度的敏感度(图6)。从图中可看出,对于不同的网格剖分大小,同阶次的Taylor和2D-GLQ随着观测高度的提升,两种方法的计算结果都越来越接近异常理论值(True Value),网格越小,精度也越高。当观测高度为零,也就是地表观测时,2D-GLQ方法的计算精度始终大大高于Taylor方法,并且,随着观测高度的增大,在一定的观测高度区间内,2D-GLQ方法的计算结果会略微高于异常理论值,这些都是2D-GLQ计算特点所决定的[19]。然而,当网格大小仅为3'×3'时,仍然难以达到地表观测的高精度计算要求,所以,需要进一步提高计算精度。
图6

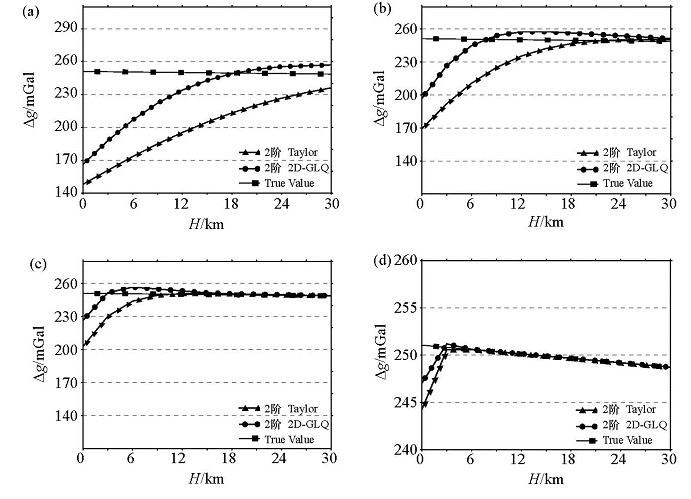

图6
不同网格大小下Taylor和2D-GLQ在不同观测高度处的重力异常计算值与理论异常值的对比
a—1°×1°;b—30'×30';c—15'×15';d—3'×3'
Fig.6
The gravity anomaly calculated by the Taylor on the different cell size and 2D-GLQ methods based on the different height of observation surface
泰勒级数展开法的公式推导过程繁琐,目前它已有的重力正演计算公式最高阶次只有二阶,更高阶次(四阶、六阶等)的公式推导所带来的工作量一直让人望而却步,而GLQ方法可以很轻松地实现更高阶次的计算,配合自适应剖分方案,使得在实现同等精度情况下,计算耗时大大减少,实现了地表观测重力正演计算的更高精度、更高效率。我们用Er来表示本文方法重力计算值gGLQ-Plus与理论重力值gtrue的误差,则:
由于不同的距离判定值W所对应的误差级数相差较大,所以,我们采取误差的10的对数形式来表示(图7a)。从分析结果可以看出,随着2D-GLQ公式阶次的提高,计算精度会有明显的提升。当W为64时,本文2D-GLQ公式经度和纬度计算阶次都为8或12时,重力异常误差分别为0.042 9、0.019 5 mGal,与理论异常的百分误差(=Er/gtrue)分别仅为0.017 2%、0.007 8%。但是,随着W的不断增大,精度提升速率也变缓。此外,在取得同样计算误差的前提下,我们计算了采取本文的二阶2D-GLQ公式时,常规剖分计算时间T1与自适应剖分方案计算时间T2的比值T1/T2(图7b),以此来验证本文引入自适应剖分方案后对计算效率的提升。计算机的中央处理器为Inter(R) Core(TM) i7-6700HQ,随机存取存储器(RAM)为8 GB,验证程序由MATLAB R2014a编译。从对比结果分析来看,当精度要求越高时,本文方法对时间的节省效果越明显,不仅如此,加上对GLQ公式的改进,计算效率在自适应剖分方案基础上有了更进一步的提升。
图7

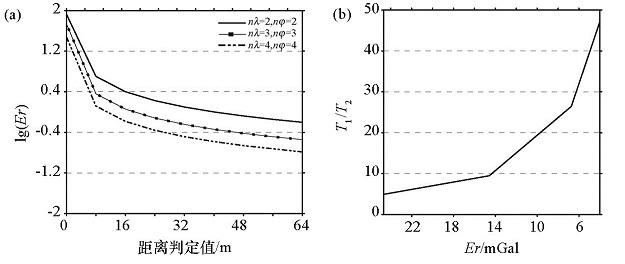

图7
本文方法效率提升试验
a—nφ,nλ不同取值时,Er的十进对数值;b—不同的Er取值,时间耗费比例值T1/T2
Fig.7
The improvement of efficiency of computation by using the method of this paper
a—the Briggs logarithm of Er based on the different value of nφ and nλ;b—the changing trend of T1/T2 when Er get reduced
此模型试验表明,相对于笛卡尔直角坐标系统,本文利用Tesseroid单元体模型,将球坐标系引入重力正演计算当中,从而避免了因忽略地球曲率对计算结果产生的影响[20]。并且,由于邻近效应的存在,现有的重力正演方法在计算精度和效率上,难以达到地表观测的要求,而本文通过对前人球坐标系重力计算公式和自适应剖分方案的改进,很好地克服了计算精度和效率对地表观测重力计算的掣肘。
2.2 密度界面模型试验
采用起伏密度界面模型(图8a)对本文重力反演方法的有效性进行验证。模型的起伏范围为31~39 km,网格大小为0.2°×0.2°,剩余密度值为-0.3 g/cm3,计算时将地表作为参考面。为了避免难以克服的边界效应,我们将模型区域四周剔除掉0.6°的宽度。
图8

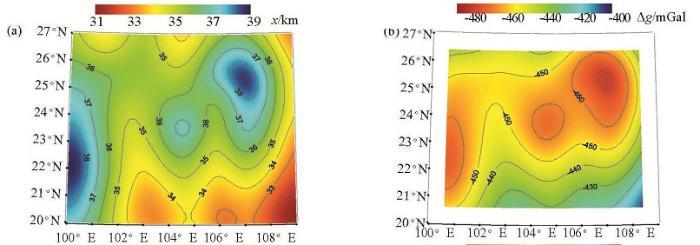

图8
理论模型正演
a—密度界面模型深度分布图;b—GQL-Plus计算的重力异常
Fig.8
The depth of academic interface and its forward result
a—the density interface model graph; b— the gravity anomaly graph of density interface model forward result by the GQL-Plus method of this paper
图8b为通过笔者GQL-Plus算法得到的重力异常。我们直接把利用本文方法正演得到的重力异常值作为实际观测值进行接下来的反演计算,并与其他方法反演结果进行对比(图9)。由图9信息不难发现,基于球坐标系的反演方法得到的密度界面(图9b、c)起伏形态比基于笛卡尔坐标系反演得到的密度界面(图9a)形态更接近实际模型深度起伏形态,说明基于球坐标系的反演方法相较笛卡尔坐标系的反演方法更为稳定。各反演方法得到的界面深度与实际模型深度的差值(图9d~f)说明本文基于球坐标系的密度界面反演方法的反演结果与实际模型深度最为接近,本文反演方法的反演精度要远远高于其他两种方法的反演精度(图9g)。笔者反演方法在迭代5次过后,各参数的均方差(RMS)已经趋于稳定,当2D-GLQ公式为8阶,W取64时,笔者方法的深度RMS能低至8 m,异常RMS能低至0.003 542 mGal。
图9

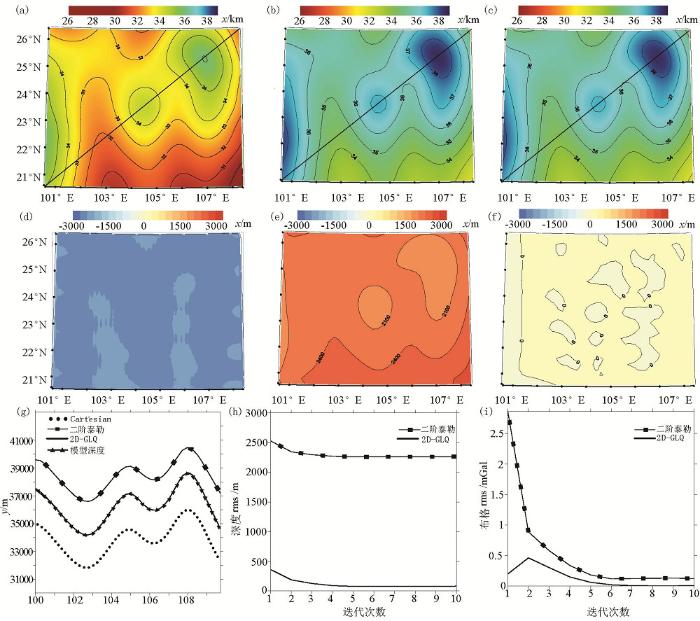

图9
各方法的理论模型反演对比试验
a—笛卡尔坐标系反演结果;b—基于二阶泰勒级数法正演的反演结果;c—基于本文2D-GLQ正演方法的反演结果;d、e、f—为图(a)、(b)、(c)反演结果与理论模型深度的平面差值;g—图(a)、(b)、(c)对角剖面与理论深度值对比;h—深度RMS随迭代次数的走势图;i—布格异常RMS随迭代次数的走势图
Fig.9
Comparisons of the inversion results from the data of
a—Cartesian coordinates;b—two order Taylor;c—2D-GLQ inversion results; d,e,f—respectively are errors of (a), (b), and (c); g—shown the diagonal section comparisons of (a), (b) and (c);h—depth RMS;i—bouguer RMS
3 华南实际数据试验
上,又遭受全球大陆聚散和南北大陆离散拼合的联合构造应力作用,是欧亚板块、太平洋板块和印度洋板块的拼接挤压带,构造变形复杂,岩浆活动强烈。而到了中晚中生代(燕山期)时期,统一的华南陆块又经历了陆内构造改造和西太平洋板块西向俯冲,使得西北部陆块呈现自东向西推进的活化变形,而东南部陆块区域呈现出面状分布的岩浆侵入与构造变形。
重力数据来源于世界地质图委员会(CGMW)公布的世界重力网格数据库 WGM 2012,将其网格化得到华南大陆布格重力异常数据(图10a),经度范围为104°E~122°E,纬度范围为21°N~32°N,数据网度为0.2°×0.2°。WGM 2012数据库是由国际重力测量局依据高分辨率的地球重力模型 EGM2008 和高程模型 ETOPO1采用球谐方法计算得到的,计算中考虑了实际的地球模型和大多数地表物质质量分布。WGM2012布格重力异常数据不仅包含了莫霍面起伏引起的重力异常,还包含了地壳中浅部地质体和地幔干扰所产生的重力异常,所以,为了得到主要由莫霍面起伏所引起的区域重力异常,我们进行参数测试,最终选择带宽为800 km的低通滤波处理,去除浅部高频异常的干扰,得到网格间距为0.2°×0.2°的区域重力异常数据(图10b),异常范围大致为-250~10 mGal。笔者在反演过程中对剩余密度值和参考深度进行了测试,最终选择剩余密度值为-0.28 g/cm3、参考深度值为30 km。本次莫霍面反演采用6阶2D-GLQ公式,W值为32的重力正演计算方法,利用Cordell迭代算法进行反演计算,迭代4次以后,结果趋于稳定,得到了华南大陆莫霍面深度(图10c)。反演结果的理论重力异常与区域实际重力异常RMS为0.582 mGal。
图10

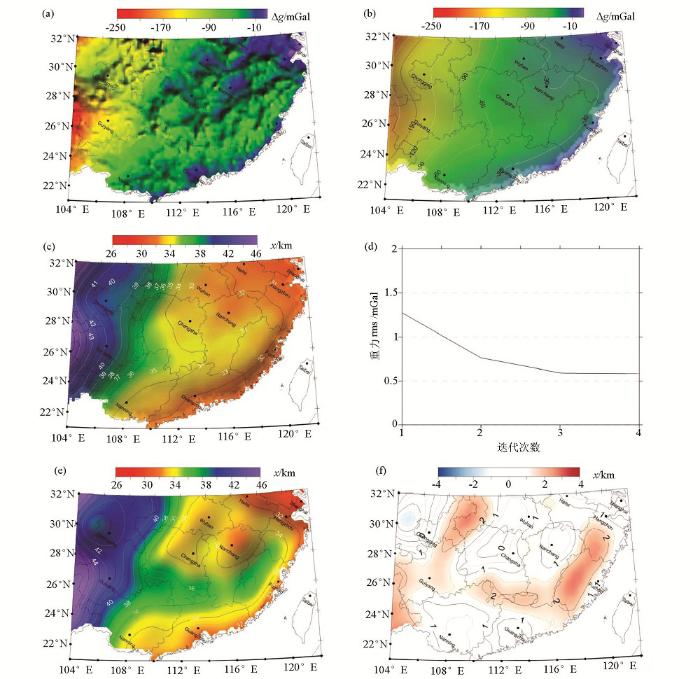

图10
华南大陆实测数据试验
a—华南大陆重力异常滤波前异常;b—华南大陆重力异常低通滤波后区域异常;c—本文得到的华南大陆莫霍面;d—反演迭代收敛曲线;e—华南大陆莫霍面[39];f—c与e的莫霍面深度差值
Fig.10
Comparisons of the inversion results from measured data in South China
a— The Bouguer anomaly in South China;b—The Moho gravity anomaly in South China by using the low-pass filter;c—The Moho depth in South China by the inversion method of this paper;d—The trend chart of depth RMS;f—The Moho depth in South China[39];g—The difference of (c) and (e)
4 结论
笔者利用了Tesseroid模型构建方法,将球坐标系常规重力正演计算中的高斯—勒让德积分公式加以改进,并将引入的Tesseroid网格自适应剖分方案公式和流程进行了简化,提高了球坐标系重力正演计算效率和计算精度。其次,在实现了球坐标系密度界面重力高精度正演的基础上,我们应用Cordell迭代反演方法,得到了适用于地表观测数据的球坐标系密度界面高精度反演方法。在Tesseroid单元体模型试验中,对本文GLQ-Plus方法的地表观测计算精度和计算效率进行了验证,结果表明,受计算精度和计算效率的制约,常规的球坐标系重力正演方法并不能很好地适用于地表观测的重力正演计算,而本文对高斯—勒让德积分公式加以改进和引入改进的自适应剖分方案后,情况得到了明显的改善。在密度界面模型试验中,将笛卡尔坐标系的密度界面反演方法和球坐标系的密度界面反演方法进行了对比,该模型试验不仅表明了基于球坐标系的密度界面反演结果比笛卡尔坐标系的密度界面反演结果更加稳定可靠,还验证了本文给出的球坐标系密度界面反演方法可以实现地表重力观测数据的高精度反演(深度RMS<8 m)。在华南大陆实测数据试验中,我们得到了华南大陆的莫霍面深度,并与前人得到的莫霍面深度进行了对比,验证了本文方法的科学有效性。
