物探与化探, 2018, 42(3): 461-472 doi: 10.11720/wtyht.2018.1325

地质调查·资源勘查

黑龙江新城沟地区花岗岩成矿地球化学特征分析及资源潜力预测

郝义, 王显民, 王金香

山东省煤田地质局第一勘探队,山东 滕州 277500

Metallogenic geochemical characteristics and potential resources prediction of granites in Xinchenggou area, Heilongjiang Province

HAO Yi, WANG Xian-Min, WANG Jin-Xiang

No. 1 Prospecting Party of Shandong Coal Geology Bureau, Tengzhou 277500,China

责任编辑: 蒋实

收稿日期: 2017-07-19   修回日期: 2017-10-29   网络出版日期: 2018-06-05

基金资助: 山东省国土资源厅地勘基金项目.  鲁勘字201558号

Received: 2017-07-19   Revised: 2017-10-29   Online: 2018-06-05

Fund supported: .  鲁勘字201558号

作者简介 About authors

郝义(1982-),男,工程师,2010年毕业于中国海洋大学,从事地质调查与矿产勘查工作。Email:chhy0533@163.com

摘要

东宁新城沟地区的花岗岩体位于兴蒙造山带东缘的活动大陆边缘带。通过岩相学和岩石地球化学分析认为,研究区内岩体的里特曼指数δ介于1.41~2.11之间,为钙碱性岩系;w(K2O)/w(Na2O)比值大于1,为高碱相对富钾;铝饱和指数ACNK=1.02~1.20,主要为弱过铝质I型花岗岩,部分具有S型同碰撞花岗岩的特征。岩体中稀土总量较低(∑REE=72.35×10 -6~217.64×10 -6),轻、重稀土分异较强(LaN/YbN=2.74~11.37),Eu具有较为明显的负异常,δCe为0.96~1.11,Ce异常不明显;Nb、Ta、P、Ti等相对亏损,Rb、Ba、K等相对富集,w(Nb)/w(Ta)比值为(6.18~26.33,平均为15.18)小于16.2,指示岩浆来源于上地幔或下地壳,形成过程中同化混染了较多壳源物质。区内岩浆的形成受古生代末和中生代初西伯利亚板块与华北板块发生陆陆碰撞以及晚三叠世古太平洋板块向欧亚大陆东缘俯冲的双重作用影响,岩浆侵入存在由早期向晚期阶段演化的过程,致使源岩存在一定差异,具有多期次、多阶段、复合成因的特点。物化探异常、岩石地球化学及含矿性参数显示,研究区具有寻找浅成低温热液型Au、Ag、Cu矿的资源潜力。

关键词: 新城沟地区 ; 活动大陆边缘 ; 花岗岩 ; 地球化学特征 ; 资源潜力

Abstract

The granites in Xinchenggou area of Dongning County are located on the active continental margin of eastern part of Xing'anling-Mongolian orogenic belt. In this paper, petrologic and element geochemical studies were carried out for granites in Xinchenggou area, Dongning County. Major element geochemistry shows that the rocks are calc-alkaline and I-type granites, and are also characterized by enrichment of alkali, relative enrichment of potassium and S-type syn-collisional granites. The Rittman index δ is from 1.41 to 2.11. The alumina saturation index ACNK is from 1.02 to 1.20. REE concentrations are low ( ΣREE=72.35×10 -6~217.64×10 -6 ) and show obvious differentiation between LREE and HREE ( LaN/YbN=2.74~11.37 ), with apparent Eu negative anomalies ( δEu=0.14~0.83 ), and the abnormality of δCe (δCe =0.96~1.11) is not apparent. In addition, the rock mass is relatively poor in such elements as Nb, Ta, P and Ti, and rich in Rb, Ba and K . w(Nb)/w(Ta) ratios of trace elements are less than 16.2, suggesting that the magmas were formed by partial melting of the crust. The magmas were formed by collision between the North China plate and Siberia plate in Late Paleozoic-Early Mesozoic period and subduction of the paleo-Pacific plate towards the east edge of Eurasia in Late Triassic. The magmas also had the characteristics of multi-stages and complex genesis. Geophysical and geochemical anomaly, geochemical characteristics, and geochemical ore parameters indicate that this area has prospecting potential for epithermal-type Au-Ag-Cu deposits.

Keywords: Xinchenggou area ; active continental margin ; granite ; geochemical characteristics ; resource potential

PDF (7199KB) 元数据 多维度评价 相关文章 导出 EndNote| Ris| Bibtex  收藏本文

本文引用格式

郝义, 王显民, 王金香. 黑龙江新城沟地区花岗岩成矿地球化学特征分析及资源潜力预测. 物探与化探[J], 2018, 42(3): 461-472 doi:10.11720/wtyht.2018.1325

HAO Yi, WANG Xian-Min, WANG Jin-Xiang. Metallogenic geochemical characteristics and potential resources prediction of granites in Xinchenggou area, Heilongjiang Province. Geophysical and Geochemical Exploration[J], 2018, 42(3): 461-472 doi:10.11720/wtyht.2018.1325

0 引言

东宁新城沟地区位于黑龙江省牡丹江市东南部,与俄罗斯远东地区相邻。研究区附近矿产资源丰富,已经发现了多处浅成低温热液型金银矿床(图1)。该区属于滨太平洋成矿带的重要金属成矿区,形成的斑岩型—浅成低温热液型矿床多与中生代岩浆侵入—次火山—火山活动有关。笔者在综合分析目前研究区附近各主要矿床特征的基础上,依托东宁新城沟地区的地质调查资料,对该区花岗岩的岩石地球化学特征进行研究,探讨其岩石成因、产出构造等成矿环境及成矿的可能性,以期为该区的矿产勘查工作提供参考资料。

图1

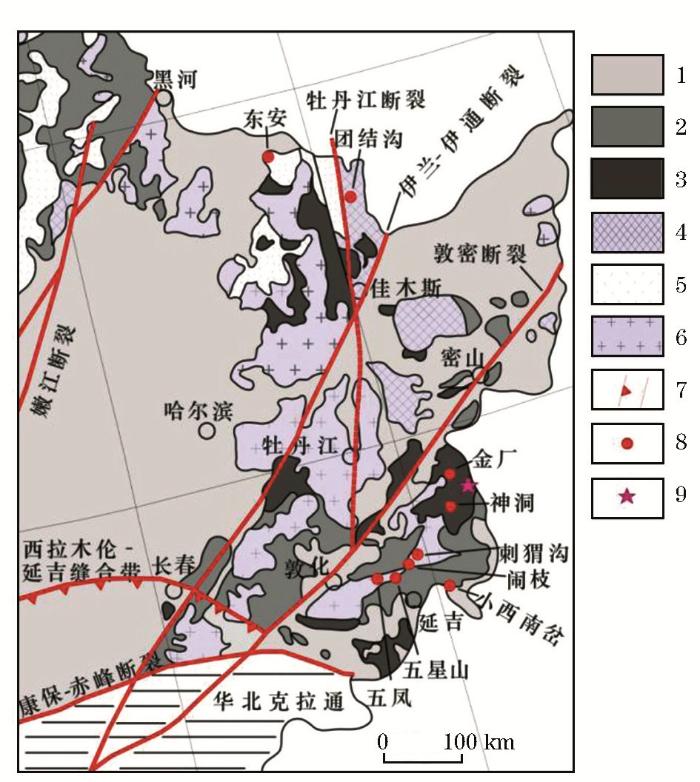

图1   新城沟地区断裂构造及多金属矿床分布(据张宇等[1])

1—新生代沉积盆地;2—上古生界地层;3—下古生界地层;4—前寒武纪岩石;5—中生代陆相火山岩和沉积岩;6—中生代花岗岩;7—缝合带和断裂构造;8—矿床点;9—研究区位置


1 地质背景

研究区大地构造位置位于天山—兴蒙造山带东段的兴凯地块(图2),该地块西以延吉断裂为界,与松嫩—张广才岭地块相邻,北以敦化—密山断裂为界,与佳木斯地块相邻,东以阿尔谢尼耶夫断裂为界,与锡霍特—阿林地体相邻。兴凯地块南部花岗岩的锆石U-Pb年龄为202~205 Ma[2],属于古亚洲洋和古太平洋构造体制的转换阶段,构造演化较为复杂。通过对比兴凯地块与华南板块所分布的石炭纪、二叠纪、三叠纪的古生物化石及生物地理特征[3,4,5,6],认为兴凯地块是外来地体,与华南板块有密切联系[7,8],属于大华南板块的东北部[9,10]。兴凯地块主要由少量前寒武纪变质杂岩、早古生代—新生代沉积盖层、大面积的中生代花岗岩以及中晚二叠世—晚三叠世火成岩所组成[11]

图2

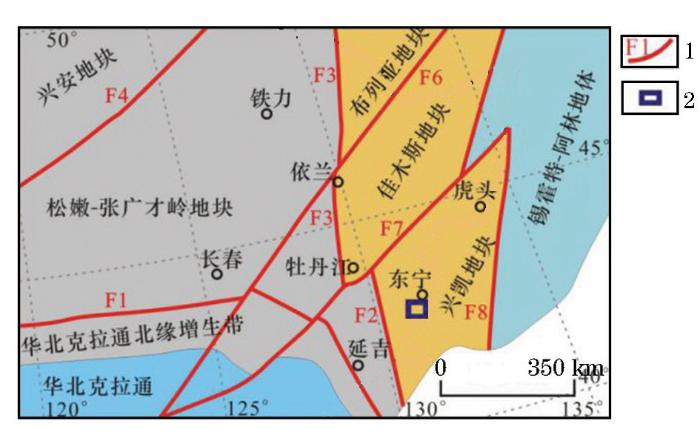

图2   东北地区大地构造略图(据王枫等[11])

F1—索伦-西拉木伦-长春断裂;F2—延吉断裂;F3—嘉荫-牡丹江断裂;F4—黑河-贺根山断裂; F6—伊通-依兰断裂;F7—敦化-密山断裂;F8—阿尔谢尼耶夫断裂;1—断裂; 2—研究区位置


研究区内中、新生界地层区划属滨太平洋地层区,出露地层主要为上三叠统罗圈站组(T3l)、下白垩统穆棱组(K1m)、中—上新统船底山组(Nc)(图3),岩性分别以凝灰岩、砂岩、玄武岩为主。变形构造基本为断裂,以NE向断裂构造为主,广泛发育的中生代多类型的岩浆岩受断裂构造控制。区内岩浆活动主要集中在晚三叠—早侏罗世,主要为中细粒花岗闪长岩(T3Jlγδ)、中粗粒正长花岗岩(T3J1ξγ)。

图3

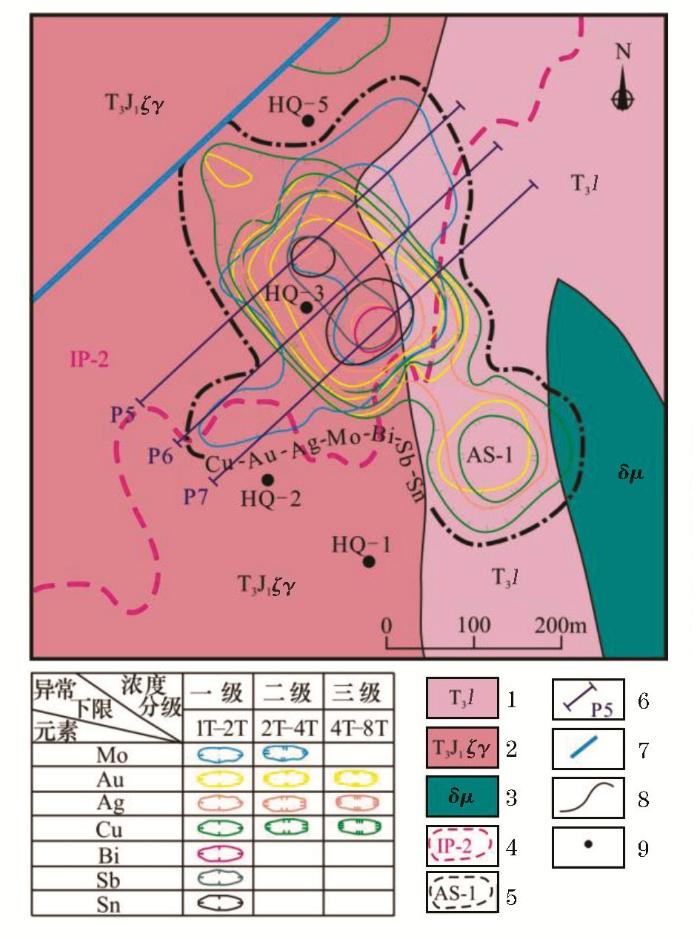

图3   东宁新城沟地区地质简图

1—上三叠统罗圈站组;2—晚三叠世-早侏罗世正长花岗岩;3—闪长玢岩;4—激电中梯异常范围及编号;5—土壤测量异常及编号;6—土壤测量剖面及编号;7—矿区边界;8—地质界线;9—取样点位置


2 岩相学特征

研究区内主要的花岗岩体为正长花岗岩,呈浅肉红色,半自形粒状结构,块状构造(图4)。岩石主要成分为钾长石(Kfs)、石英(Qtz)、斜长石(Pl),次要成分为黑云母(Bt),副矿物为磁铁矿,蚀变矿物主要为高岭石、蒙脱石等。钾长石呈它形、粒状,泥化显浅褐色,主要为条纹长石、微斜长石,粒径0.2~1 mm,含量约50%~55%。石英呈它形、粒状,粒径0.2~1 mm,含量约25%~30%。斜长石呈半自形、柱状,细密聚片双晶,An(钙长石百分比)为25,粒径0.2~1 mm,含量约15%~20%。黑云母呈自形、片状,褐色,片径0.2~1 mm,含量少。副矿物磁铁矿含量少。

图4

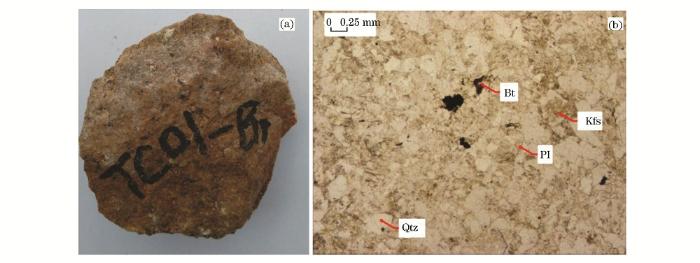

图4   东宁新城沟地区正长花岗岩手标本(a)及镜下照片(单偏光)(b)


3 岩石地球化学特征

于野外不同地点采集了4件具有代表性的正长花岗岩岩体,全岩常量、微量元素分析在华北有色地质勘查局燕郊中心实验室进行,常量元素分析采用分光光度法,所用仪器为上海光谱仪器有限公司的722S型可见光分光光度计和北京海光仪器厂的GGX-6型原子吸收分光光度计,分析精度优于5%;微量元素和稀土元素分析采用PE公司的电感耦合等离子质谱仪(ICP-MS)测定,分析精度优于10%。为了对比分析,引入敬海鑫等[2]在该区附近所做的部分资料。样品分析结果及特征参数统计结果见表1表2

表1   东宁新城沟地区花岗岩的常量元素、微量元素和稀土元素分析结果

样品号HQ-1HQ-2HQ-3HQ-5JX1304JX13051322
岩石名称正长花岗岩正长花岗岩正长花岗岩正长花岗岩二长花岗岩二长花岗岩二长花岗岩
SiO276.7874.5672.1271.2374.2075.1676.42
Al2O311.9812.6813.0713.5213.1512.8512.70
Fe2O31.181.371.270.990.300.250.20
FeO0.881.681.682.821.721.401.11
K2O4.673.503.403.234.174.234.80
MgO0.100.410.640.900.260.170.11
Na2O3.423.363.013.073.853.863.59
CaO0.521.451.262.201.120.940.71
TiO20.090.240.330.420.160.130.10
MnO0.020.040.030.080.040.040.02
P2O50.010.050.080.080.030.020.02
LOI0.280.492.931.310.580.340.39
Total99.9499.8399.8299.8599.7299.45100.16
Rb167.00145.00120.00132.0089.40114.00161.00
Ba120468465526780951712
Nb10.207.078.5610.4010.407.904.90
Ta1.650.911.181.260.400.300.20
K38751.0629042.5528212.7726802.1334602.1335100.0039829.79
Sr17.298.6120.00156.00194.50107.5059.40
Cr6.657.8514.2026.50
P61.13218.31349.30349.30130.9987.3287.32
Hf4.854.426.127.418.705.805.80
Th7.439.502.10
Zr375.00219.0091.00
Ti564144019802520960780600
La20.7019.0014.5034.8026.2049.0020.20
Ce40.0032.3028.2071.1057.6093.5038.20
Pr4.713.593.499.206.139.884.30
Nd14.2011.9012.3033.4024.1037.3016.50
Sm3.272.772.727.895.136.933.37
Eu0.170.470.491.171.290.710.47
Gd4.222.542.436.744.415.783.26
Tb0.870.440.421.100.700.930.57
Dy6.543.042.636.684.265.383.58
Ho1.460.630.571.310.871.130.78
Er4.651.971.793.762.663.032.32
Tm0.760.320.290.570.420.500.39
Yb5.422.292.183.772.733.092.61
Lu0.850.350.340.530.470.480.39
Y45.2020.3016.0037.7027.2032.7025.00

注:氧化物含量单位为%,稀土、微量元素含量单位为10-6。JX1304、JX1305、1322样品数据引自敬海鑫等[2],其余为本文数据。

新窗口打开| 下载CSV


表2   东宁新城沟地区花岗岩的常量元素、微量元素和稀土元素特征参数统计结果

样品号HQ-1HQ-2HQ-3HQ-5JX1304JX13051322
岩石名称正长花岗岩正长花岗岩正长花岗岩正长花岗岩二长花岗岩二长花岗岩二长花岗岩
w(K2O)+w(Na2O)8.096.866.416.308.028.098.39
w(K2O)/w(Na2O)1.371.041.131.051.081.101.34
δ1.941.491.411.412.062.042.11
Mg#8.4120.0628.7830.1821.0020.0015.00
A/CNK1.031.061.201.081.021.021.02
A/NK1.601.631.801.161.211.171.14
DI94.1586.9085.6379.6790.0391.8393.71
SI0.983.986.408.172.521.721.12
R12761288629442826256826222661
R2297427437553394365331
w(Nb)/w(Ta)6.187.777.258.2526.0026.3324.50
w(Rb)/w(Nb)16.3720.5114.0212.698.6014.4332.86
w(Rb)/w(Sr)9.711.471.000.850.461.062.71
w(Rb)/w(Ba)1.390.310.260.250.110.120.23
w(Sr)/w(Y)0.384.867.504.147.153.292.38
∑REE107.8281.6172.35182.02136.97217.6496.94
∑LREE83.0570.0361.70157.56120.45197.3283.04
∑HREE24.7711.5810.6524.4616.5220.3213.90
w(∑LREE)/w(∑HREE)3.356.055.796.447.299.715.97
δEu0.140.540.580.490.830.340.43
δCe0.990.960.970.971.111.041.00
LaN/YbN2.745.954.776.626.8811.375.55
LaN/SmN4.094.433.442.853.304.563.87
GdN/YbN0.640.920.921.481.341.551.03

注:铝饱和指数A/CNK=Al2O3/(CaO+Na2O+K2O)(摩尔分数比);A/NK=Al2O3/(Na2O+K2O)(摩尔分数比);镁质指数Mg#=100×MgO/(MgO+TFeO)(摩尔分数比);里特曼指数δ=(K2O+Na2O)2/(SiO2-43)(质量分数比);分异指数DI=Q+Or+Ab+Ne+Lc+Kp(CIPW计算数据);固结指数SI=100×MgO/(MgO+Fe2O3+FeO+Na2O+K2O)(质量分数比);R1=4Si-11(Na+K)-2(Fe+Ti),R2= 6Ca+2Mg+Al,各原子数据根据样品分析指标中指标含量及其分子式求取。

新窗口打开| 下载CSV


3.1 常量元素特征

常量元素分析结果显示,区内花岗岩的SiO2含量介于71.23%~76.78%之间,铝弱过饱和,Al2O3含量11.98%~13.52%,其中MgO(0.10%~0.90%)、TiO2、Fe2O3、P2O5含量偏低。区内花岗岩的里特曼指数δ介于1.41~2.11之间,平均值为1.78,主要为钙碱性岩系。在TAS图解中(图5),本区花岗岩主要位于碱性趋势线之下的亚碱性区域,正长花岗岩位于花岗岩区域,与岩相学特征中的岩矿鉴定结果较为相符。

图5

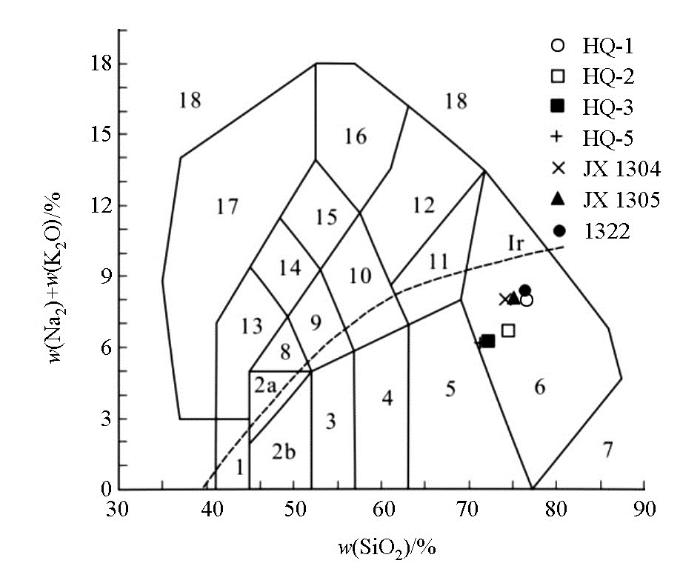

图5   东宁新城沟地区花岗岩的TAS图解(底图据Middlemost[12])

Ir—Irvine分界线,上方为碱性,下方为亚碱性;1—橄榄辉长岩;2a—碱性辉长岩;2b—亚碱性辉长岩;3—辉长闪长岩;4—闪长岩;5—花岗闪长岩;6—花岗岩;7—硅英岩;8—二长辉长岩;9—二长闪长岩;10—二长岩;11—石英二长岩;12—正长岩;13—副长石辉长岩;14—副长石二长闪长岩;15—副长石二长正长岩;16—副长正长岩;17—副长深成岩;18—霓方钠岩/磷霞岩/粗白榴岩


w(SiO2)—w(K2O)岩浆系列判别图上(图6a),花岗岩主要位于高钾钙碱性系列区域。花岗岩的K2O+Na2O含量为6.30%~8.39%,w(K2O)/w(Na2O)比值大于1,属于高碱相对富钾。花岗岩的铝饱和指数ACNK=1.02~1.20,平均值为1.06,在ACNK-ANK图解中投点位于弱过铝质区域(图6b),使用含铝指数ACNK=1.1作为I型和S型花岗岩的分界,ACNK<1.1,显示I型花岗岩的特征。花岗岩的分异指数DI=79.67~94.15,表明本区花岗岩岩浆分离结晶作用较强烈,酸性程度较高,有利于形成矿(化)。花岗岩的固结指数SI=0.98~8.17,反映岩浆分异程度较高。

图6

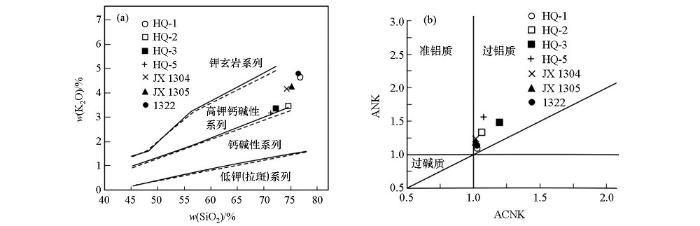

图6   东宁新城沟地区花岗岩SiO2-K2O图解(a)(实线据Peccerillo, et al.[13]; 虚线据Middlemost[14])和ACNK-ANK图解(b) (底图据Maniar, et al[15])


3.2 稀土元素特征

稀土元素分析结果显示(图7a),岩体稀土总量较低(∑REE=72.35×10-6~217.64×10-6),w(∑LREE)/w(∑HREE)一般为3.35~9.71,相对富集LREE,亏损HREE;LaN/YbN=2.74~11.37,平均值为6.27,轻、重稀土分异较强,显示演化趋势较为一致的右倾型稀土配分模式,反映轻稀土丰度相对较高的壳源物质参与了岩浆作用;轻稀土分异较强烈(LaN/SmN=2.85~4.56),重稀土分异相对较弱(GdN/YbN=0.64~1.55)。δCe为0.96~1.11,Ce异常不明显,可能是由于地壳物质的混染作用造成的。δEu为0.14~0.83,岩石具有较为明显的铕负异常,说明本区花岗岩岩浆的生成和演化背景较为一致,均来源于上地幔或下地壳的同一岩浆源,并且岩石在形成过程中源区有斜长石的残留,或在后期发生了斜长石的分离结晶。稀土元素配分曲线中(图7a),HQ-1样品的Eu负异常较其他样品更为明显,SiO2含量、分异指数DI也比其他样品高,表明研究区内的花岗岩岩浆存在分离结晶作用由弱变强,酸性程度由低到高的趋势,Eu弱负异常也逐渐变成强负异常,这可能与研究区内的岩浆侵入存在由早期向晚期阶段的演化过程有关[16]

图7

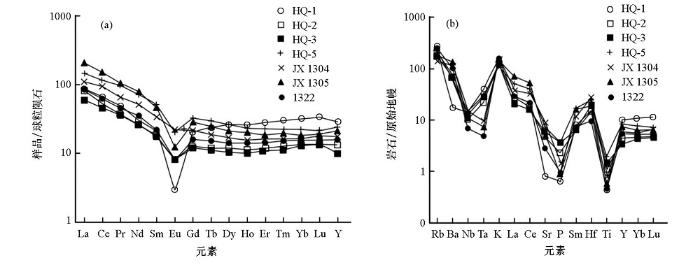

图7   东宁新城沟地区花岗岩稀土元素球粒陨石标准化配分曲线(a)和微量元素原始地幔标准化蛛网图(b)(标准化数据据Sun,et al.[17])


3.3 微量元素特征

样品的微量元素原始地幔标准化蛛网图中(图7b),所分析的微量元素总体显示较为一致的右倾型分布形式,各岩石样品的微量元素总量差别不大。Nb、Ta、P、Ti等高场强元素相对亏损,P、Ti的亏损可能与岩浆演化过程中含磷、钛等副矿物的分离结晶或源区存在寄主矿物的残留有关[18],P呈现负异常,具有高分异I型花岗岩的特征[19],Nb、Ta的亏损反映岩浆来源于地壳或受到了地壳物质的强烈混染,也可能与源区流体的交代作用有关[20]。大离子亲石元素Rb、Ba、K等相对富集,强不相容元素Rb的相对富集表明岩浆的分异作用较为充分[21],花岗岩的形成过程经历了高度演化,具有中国东部华北地台二长花岗岩的特点[22]w(Nb)/w(Ta)=6.18~26.33,平均值为15.18,低于中国东部上地壳平均值16.2和原始地幔平均值18[17],表明研究区内花岗岩岩浆源区可能位于上地幔或下地壳,并在形成过程中混染了少量地壳物质[23,24]。在岩浆演化过程中,Nb与Ta丰度皆增,但Ta比Nb丰度增加更大,故岩浆演化从早期到晚期,w(Nb)/w(Ta)比值逐渐减小[25,26]。研究区内正长花岗岩的w(Nb)/w(Ta)值为6.18~8.25,而敬海鑫等分析的二长花岗岩的w(Nb)/w(Ta)值为24.5~26.33[2],说明该区正长花岗岩所处的演化阶段相对较晚。

微量元素蛛网图中(图7b),HQ-1样品的元素分布与其他样品存在差异,该样品的w(Rb)/w(Sr)比值为9.71>5,其他样品均小于5(表2)。Wang等[27]研究认为花岗岩的形成受白云母—黑云母的脱水熔融作用控制,w(Rb)/w(Sr)>5说明花岗岩的形成与白云母脱水熔融作用有关w(Rb)/w(Sr)<5说明与黑云母脱水熔融作用有关[28]。根据微量元素w(Rb)/w(Sr)—w(Rb)/w(Ba)来判别源区[29,30],HQ-1样品位于富黏土源区,其他样品位于贫黏土源区,说明研究区内花岗岩的源岩存在一定差异。

4 岩石成因与构造及成矿环境分析

根据Perace等[31]w(Rb)—[w(Y)+w(Nb)]、w(Rb)—[w(Yb)+w(Ta)]图解来判别研究区花岗岩的构造环境。将研究区内花岗岩的Nb、Y、Rb、Yb+Ta值投在w(Rb)—[w(Y)+w(Nb)]、w(Rb)—[w(Yb)+w(Ta)]图上,投点落在火山弧花岗岩(VAG)与同碰撞花岗岩(Syn-COLG)区域(图8),反映花岗岩形成于与俯冲和同碰撞有关的构造背景。

图8

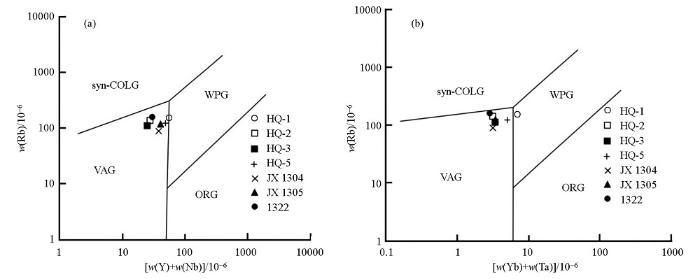

图8   东宁新城沟地区花岗岩的w(Rb)—[w(Y)+w(Nb)]构造环境判别图(a)和w(Rb)—[w(Yb)+w(Ta)]构造环境判别图(b)(底图据Perace,et al.[31])

Syn-COLG—同碰撞花岗岩;WPG—板内花岗岩;VAG—火山弧花岗岩;ORG—洋中脊花岗岩


从花岗岩构造环境判别R1-R2图解(图9a)中可以看出,样品较为集中的落在同碰撞S型花岗岩区附近,表明区内花岗岩的形成可能与同碰撞的构造事件[32]有关。花岗岩成因系列w(K2O)—w(Na2O)图解中显示(图9b),花岗岩样品主要落在I和A型花岗岩区内,落在A型区的样品可能属于I型花岗岩的亚类[33]。岩体的w(Rb)/w(Nb)比值平均为17.07,明显高于全壳平均值(5.36),表明它们在形成过程中有部分壳源组分参与了熔融[34,35]w(Sr)/w(Y)比值为0.38~7.50,平均值为4.24,小于10,Mg#值为8.41~30.18,平均值为20.49,小于40,表明研究区内的花岗岩具有地壳重熔特征[36]w(Rb)/w(Ba)比值为0.11~1.39,高于原始地幔的相应值(w(Rb)/w(Ba)为0.088),说明岩浆的分异演化程度较高[37]

图9

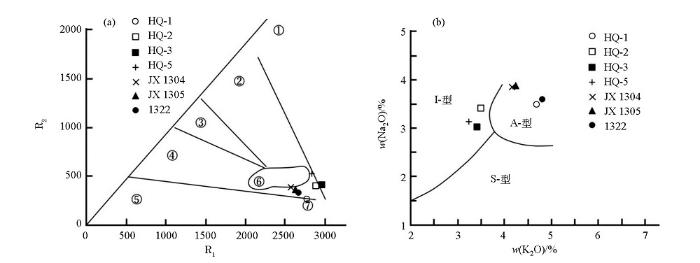

图9   东宁新城沟地区花岗岩R1-R2图解(a)(底图据Batchelor,et al.[38])和w(K2O)—w(Na2O)图解(b)(底图据Collins,et al.[33])

①—地幔斜长花岗岩;②—破坏性活动板块边缘(板块碰撞前)花岗岩;③—板块碰撞后隆起期花岗岩;④—造山晚期花岗岩;⑤—非造山区A型花岗岩;⑥—同碰撞S型花岗岩;⑦—造山期后A型花岗岩


总体来看,本区花岗岩具有I型和同碰撞S型花岗岩的特征,其形成可能与火山岛弧的构造环境及同碰撞的构造事件[32]有关,岩浆成因类型为过渡型地壳同熔型,同熔型岩浆多出现在活动大陆边缘带[39]。花岗岩的成因可能是古亚洲洋在古生代末和中生代初彻底闭合后,西伯利亚板块与华北板块发生陆陆碰撞[40],碰撞挤压导致东北地区强烈的陆壳和岩石圈堆叠、增厚、缩短,形成同碰撞S型花岗岩。在挤压增生到达高潮之后,开始减压伸展,岩石圈根部拆沉,软流圈局部上涌,造山带伸展垮塌,发育断陷盆地,产生岩石圈不同层次的流变、熔融及大规模流体,并发育大量岩浆—流体成矿系统,导致浅成低温热液矿床及其他类型矿床的形成[1,40]。晚三叠世,古太平洋板块开始向西部的欧亚大陆东缘俯冲[2],形成符合活动大陆边缘构造环境演化特征的I型花岗岩以及与岩浆岛弧环境有关的浅成低温热液型矿床。研究区附近太平岭石英闪长岩中黑云母的Rb-Sr年龄为250 Ma[41],太平岭花岗岩体的黑云母K-Ar年龄为221.5 Ma[42],金厂金矿花岗斑岩的锆石加权平均年龄为203 Ma[43],且研究区附近侵入岩可划分为华力西晚期、印支早期和印支晚期3个侵入期,部分岩体也具有S型花岗岩的特征[42],说明该区的花岗岩具有多期次、多阶段、复合成因的特点。

5 物化探异常特征

在研究区内开展了1∶1万土壤测量,样品采集B层(淋积层)中的细粒级物质,截取-10~+60目之间的样品。通过土壤测量,在该区内圈定了AS-1化探异常(图3),异常呈不规则状,长轴方向为NW-SE向,面积约0.14 km2,受岩体接触带及附近北西向次级断裂构造控制。异常主要由Au、Ag、Cu、Mo、Bi、Sb、Sn组成,其中Au、Ag、Sb、Cu具有中低温成矿元素组合的特点,Au、Ag、Cu的异常值较高,且套合较好,均达到3级浓度分带,浓集中心明显且集中。异常位于晚三叠—早侏罗世正长花岗岩与上三叠统罗圈站组凝灰岩的接触带处,与岩体关系较为密切,多元素组合表明矿化可能受多阶段热液、北西向断裂构造控制。在异常区内布设了3条点距10 m的土壤测量剖面,对该化探异常进行了查证(图3)。

P5剖面中(图10),31~34号点处的Cu、Ag、Mo异常值较高,异常连续性较好,剖面中异常的高值区间与地表土壤测量圈定的Cu、Ag异常范围基本一致,且异常高值区位于正长花岗岩和凝灰岩的接触带处,异常最高值分别为67.2×10-6、0.12×10-6、11.1×10-6,该处伴生元素Sb、Bi的异常值也较高,最高值分别为0.86×10-6、0.23×10-6。49号点处的Au异常值较高,最高值为0.84×10-9。该剖面异常为化探异常范围的详细圈定提供了依据。

图10

图10   东宁新城沟地区P5地质化探综合剖面

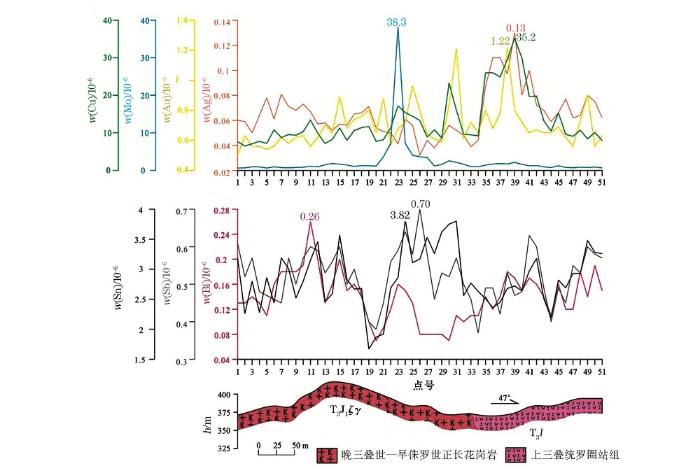

P6剖面中(图11),37~40号之间出现较为明显的异常, 以Au、Ag、Cu为主,且异常高值区位于正长花岗岩和凝灰岩的接触带附近,异常最高值分别为1.22×10-9、0.13×10-6、35.2×10-6。异常南西侧伴生元素Mo、Sb、Sn的异常值也较高,最高值分别为38.3×10-6、0.70×10-6、3.82×10-6,异常高值区位于正长花岗岩和凝灰岩的接触带附近,异常范围沿剖面走向较宽,化探剖面基本确定了异常范围,为下一步工作提供了依据。

图11

图11   东宁新城沟地区P6地质化探综合剖面


P7剖面中(图12),Ag异常最高值处,Au、Cu的曲线值也随之增高,异常值较高,三者异常最高值分别为0.2×10-6、1.08×10-9、141×10-6。该处伴生元素Mo、Sb的异常值也较高,最高值分别为8.37×10-6、2.00×10-6,元素套合关系较好。异常高值区位于正长花岗岩和凝灰岩的接触带处,与地表土壤测量圈定的Au、Ag、Cu异常范围基本一致,且较为集中,为下一步槽探工程施工提供了依据。

图12

图12   东宁新城沟地区P7地质化探综合剖面


在研究区进行1∶1万激电中梯测量,在该区西北部圈定了一处范围较大的激电异常(图3图13)。激电异常呈NE-SW走向的条带状,长约 1 km,宽约300 m,由于受矿区边界限制,异常向西北未完全封闭。该异常面积为0.27 km2,视极化率变化范围为1.5%~2.4%,视电阻率变化范围在600~2 200 Ω·m之间,具有中低阻、中高极化的特征。视极化率具有南西陡北东缓的趋势,反映高极化体向北东倾,且异常位于岩体与围岩的接触带附近,推测该异常为矿致异常。

图13

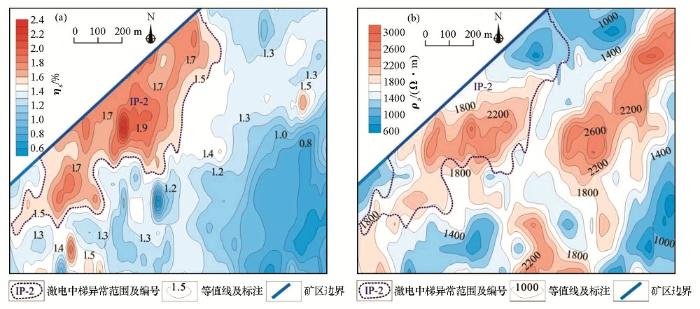

图13   东宁新城沟地区激电中梯视极化率ηs等值线平面(a)和激电中梯视电阻率ρs等值线平面(b)


总体来看,研究区内激电异常具有中低电阻、中高极化的特征,化探异常为中低温多金属元素组合,其中Au、Ag、Cu的异常值较高,异常浓集中心重叠,多数元素异常具3级分带,浓集中心明显,异常位于正长花岗岩和凝灰岩的接触带附近,其地质、物化探特点显示,该区具有较好的找矿前景。

6 资源潜力综合分析

参考Feiss[44]在美国加勒比斑岩型铜矿带中所统计的含矿与不含矿岩体的w(Al2O3)/[w(CaO)+w(Na2O)+w(K2O)]比值与SiO2含量关系的判别规律,对研究区内的正长花岗岩体进行投点对比,其结果显示样品均位于含矿区域(图14),说明该区的岩体具有一定的含矿性,具备成矿的必要条件。

图14

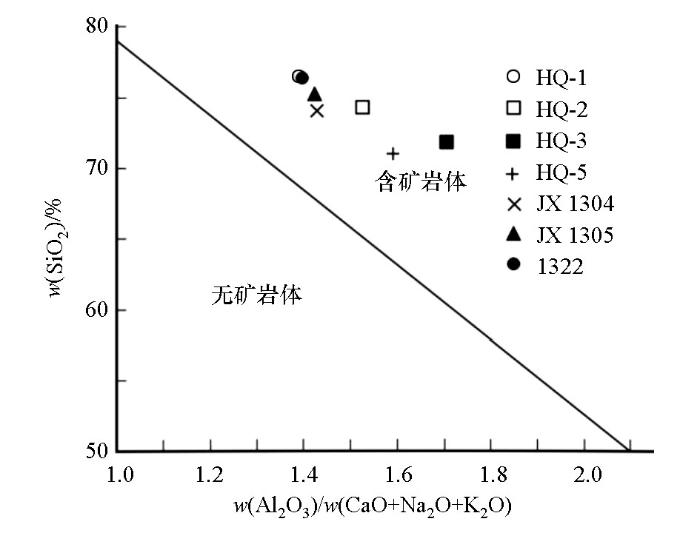

图14   东宁新城沟地区花岗岩w(SiO2)—w(Al2O3)/[w(CaO)+w(Na2O)+w(K2O)]图解(据Feiss[44])


研究区位于中亚造山带东段的吉黑成矿带,是东西向古生代古亚洲洋成矿域与北北东向中新生代滨太平洋成矿域的叠合、转换部位[45],地质演化复杂,成矿条件优越。区内岩浆活动频繁,尤其以中生代的岩浆作用为主,为内生金属成矿作用提供了较为有利的地质环境。火山机构、断裂构造发育,为矿液运移、矿体赋存提供了通道和空间。

研究区附近已发现多处金、铜(金)矿床(图1,表3),矿床类型主要为浅成低温热液型—斑岩型,成矿时代集中在120~210 Ma,主要为燕山中晚期,该时期属于东北地区重要的Cu成矿期(110~200 Ma),也包括我国东部中生代浅成低温热液Au成矿的4个年龄区间之一(144~135 Ma)[34]。其中离研究区最近的金厂金矿中与成矿关系密切的闪长玢岩和花岗斑岩的锆石加权平均年龄为203 Ma,推测其成矿时限为190~210 Ma[43],为晚三叠—早侏罗世。

表3   研究区附近主要矿床特征统计

矿床
名称
围岩控矿构造/矿体形态大地构造矿床
类型
测定方法及
成矿年龄
金厂金矿花岗闪长岩、花
岗斑岩、花岗岩
角砾岩筒构造和环状、放射状断裂;柱状、囊状佳木斯地块老黑山—绥芬河盆地边缘断裂与东西向断裂带交汇部位斑岩型、爆破角砾岩型、浅成低温热液型锆石U-Pb年龄
190~210 Ma[43]
五凤金矿中侏罗世安山质
火山碎屑岩
NE、NW断裂;囊状、柱状中生代火山岩盆地边缘浅成低温热液型Rb-Sr等时线年龄
144±7 Ma[46]
五星山金矿中侏罗世粗安—粗
面质次火山岩
NW断裂;网脉、浸染状中生代火山岩盆地边缘浅成低温热液型Ar39-Ar40年龄
123±7Ma[47]
闹枝铜金矿中侏罗世火山岩NW断裂;不规则状中生代火山岩盆地内部晚古生代褶皱基底隆起区浅成低温热液型Ar39-Ar40年龄
127.8±0.2 Ma[48]
刺猬沟金矿中侏罗世安山质
角砾凝灰岩
破火山口及裂隙;脉状中生代火山岩盆地内边缘浅成低温热液型Ar39-Ar40年龄
176.8±1 Ma[48]
小西南岔铜金矿闪长岩及青龙村
变质岩
SN及EW向断裂控制;细脉浸染型、硫化物石英脉型中生代火山岩盆地边缘的断隆区斑岩—矽卡岩型锆石U-Pb年龄
123.35~102.1 Ma[49]
神洞叶蜡石矿次花岗闪长斑岩
次生石英岩
NE向断裂;透镜状新华夏构造体系金厂—老黑山多字型构造中部北东端次火山—热液交代型晚三叠纪[50]

新窗口打开| 下载CSV


7 结论

1) 黑龙江新城沟地区的花岗岩为高钾钙碱性岩系,具有弱过铝质I型火山弧花岗岩和S型同碰撞花岗岩的特点,岩浆源来自于上地幔或下地壳,并在形成过程中同化混染了壳层物质。

2) 研究区位于兴蒙造山带东缘的活动大陆边缘带,该区岩体的形成受西伯利亚板块与华北板块发生陆陆碰撞及古太平洋板块向欧亚大陆东缘俯冲双重作用的影响,其形成具有多期次、多阶段、复合成因的特点。

3) 通过对研究区内成矿地质条件、物化探异常、花岗岩的岩石地球化学特征及含矿性进行分析研究发现,激电异常为中低电阻、中高极化,化探异常浓集中心重叠且明显,异常位于正长花岗岩和凝灰岩的接触带附近,岩体有一定的含矿性,该区具备寻找浅成低温热液型Au、Ag、Cu矿的潜力。
